Agora of the City of Arts and Science in Valencia
Location
Valencia, Spain
Contracting entity
València, Ciència i Comunicacions, S.A. (VACICO)
Execution date
36 months
Budget
102.850.000,00 €
CHARACTERISTICS

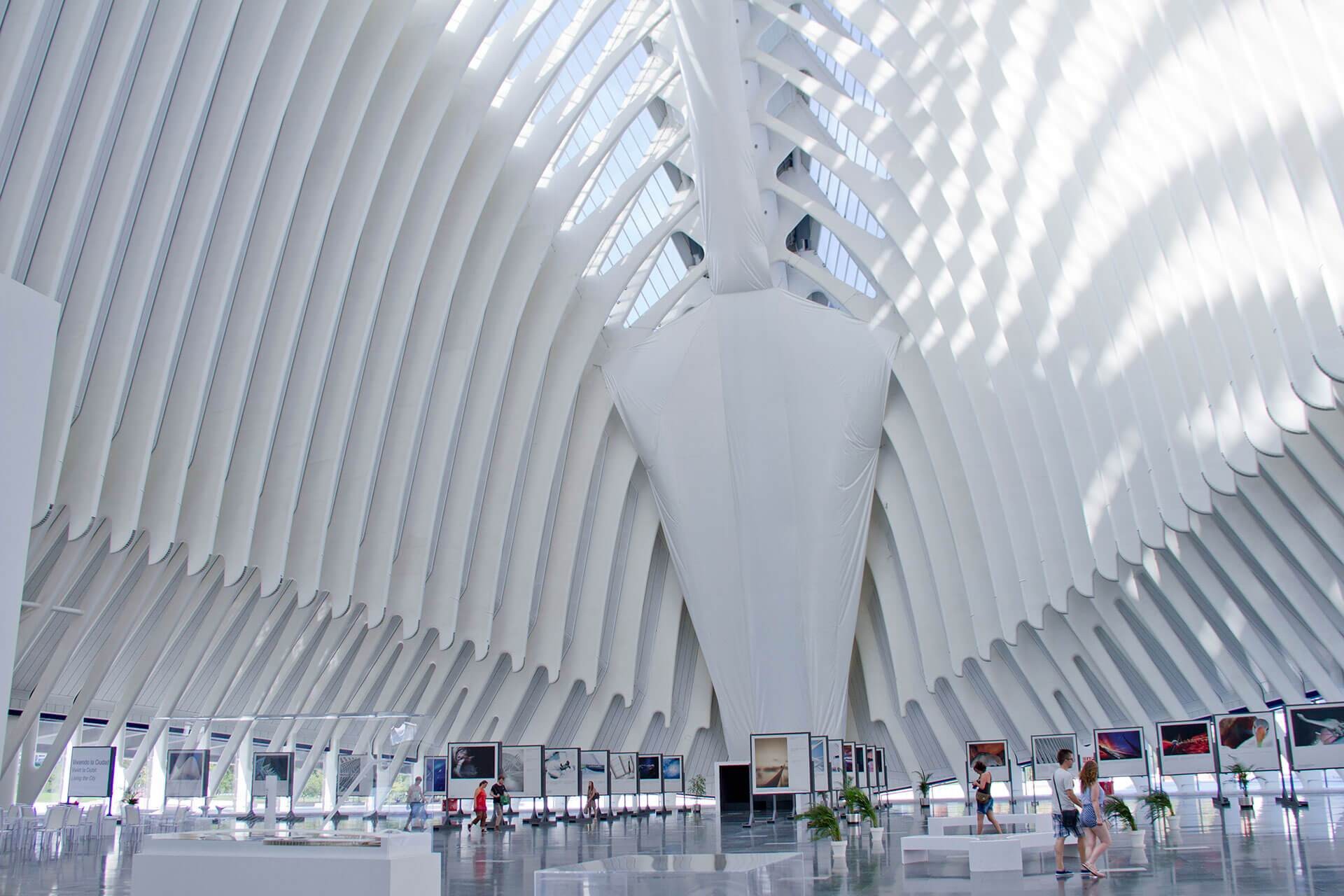

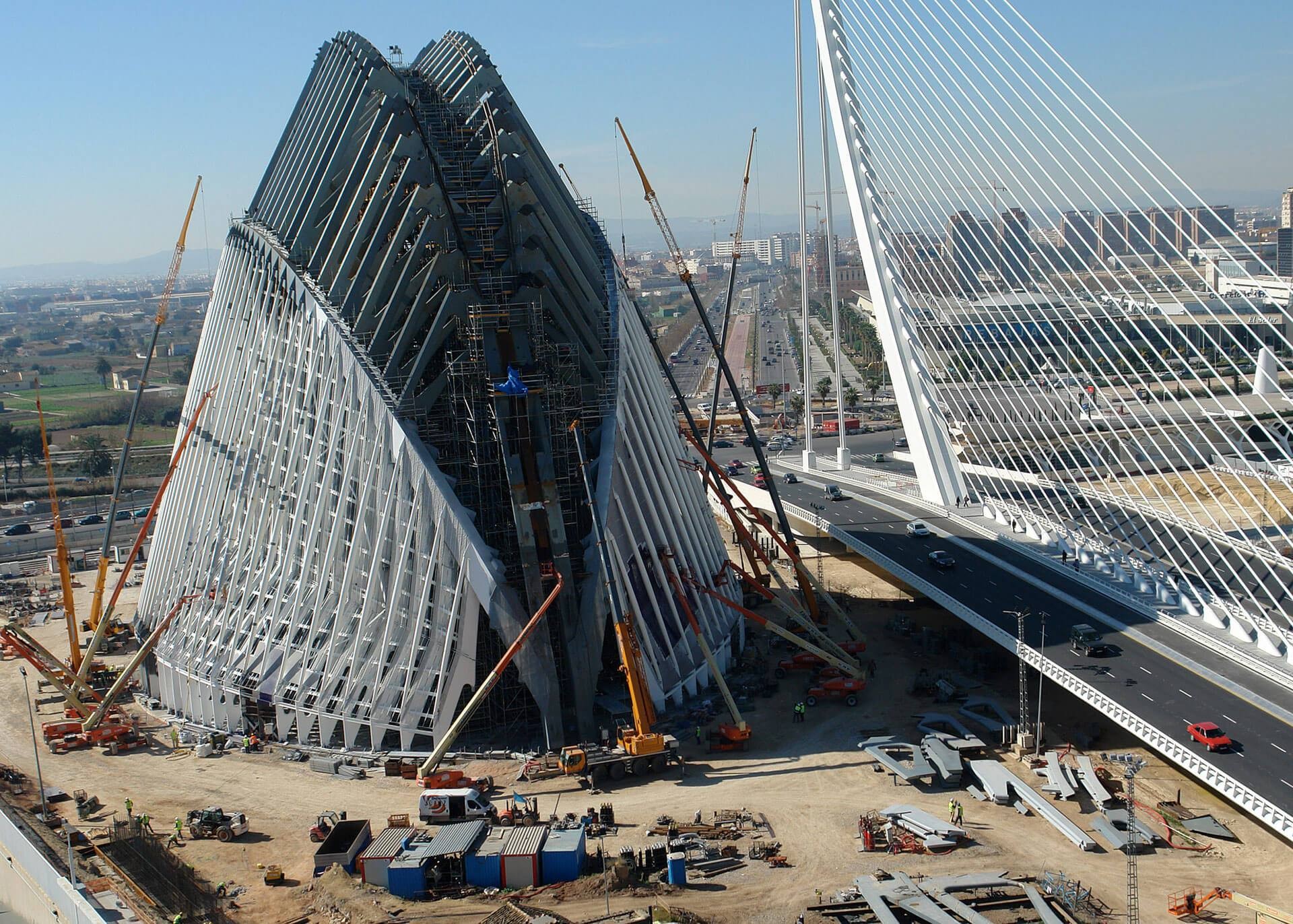

The construction of the covered square of the City of the Arts and the Sciences of Valencia. The square materializes in a singular building of elliptical plan of diameters 88 and 66 m and a surface of 4.811 m2. It reaches a maximum height inside 75 m and 105 m with the opened brisesoleil outside.
– Structural steel: 7.468.936 kg
– Steel frame: 1.331.711 kg
– Reinforced concrete: 9.391 m3

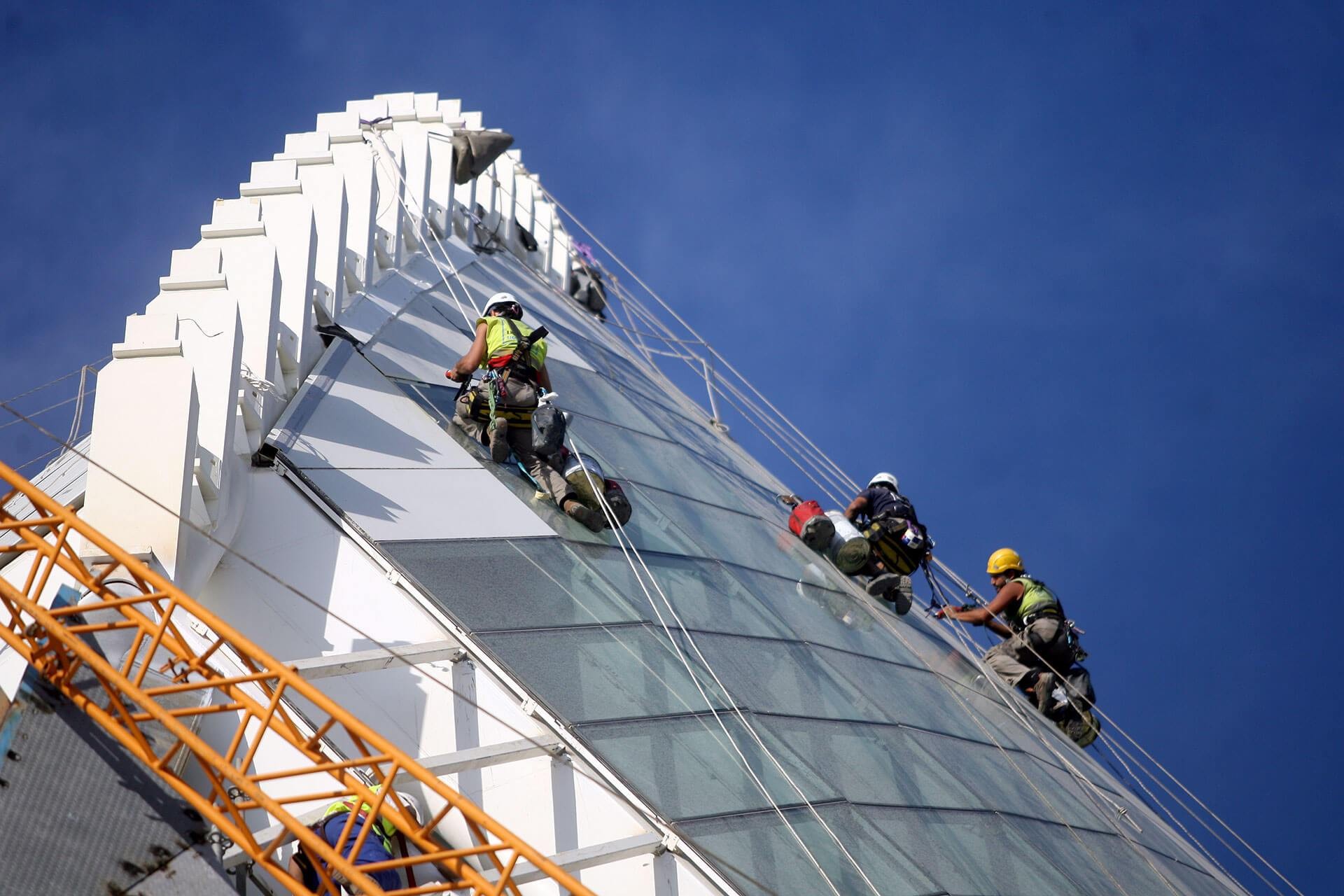

– Curtain Wall: 4.116 m2
– Piles driving 40×40 cm: 5.280 m
– Trencadís cladding: 8.021 m2
