Improvement of the East Quay. Phase 2
Location
Barcelona, Spain
Contracting entity
Barcelona Port Authority
Execution date
19 months
Budget
22 millon €
CHARACTERISTICS

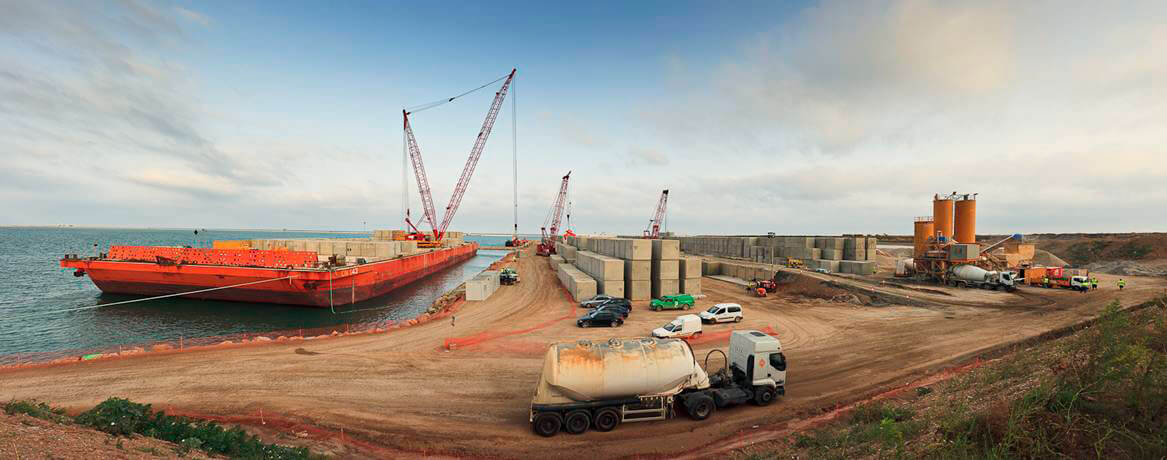

The works consisted in the repair and improvement of the breakwater, parallel to shore ,over a length of more than 5 km.
The main actions corresponded with:
– Repair of breakwater slope and foot with rockfill.<br>
– Protection berms in slope foot with rocks and 10 ton concrete cubic blocks.
-New slope protection over existing one, formed by concrete blocks of 50 tons.
Supplies and placement riprap 4 tons.
Riprap material recovery from existing quaids: 48.353 Tn.
Supplies and placement riprap 500-1.000 kg: 3.456 Tn.
Concrete in blocks of 50 tons: 122.743 m³.
Concrete in blocks of 10 tons: 6.835 m³.
Transport and placement ,blocks of 50 tons: 5.713 uds.
Transport and placement, blocks of 10 tons: 1.608 uds.
