North district road interconnection and Alcoy Viaduct
Location
Alicante, Spain
Contracting entity
Conselleria d’Infraestructures, Territori i Medi Ambient de la Generalitat Valenciana
Execution date
16 months
Budget
6 millon €
CHARACTERISTICS

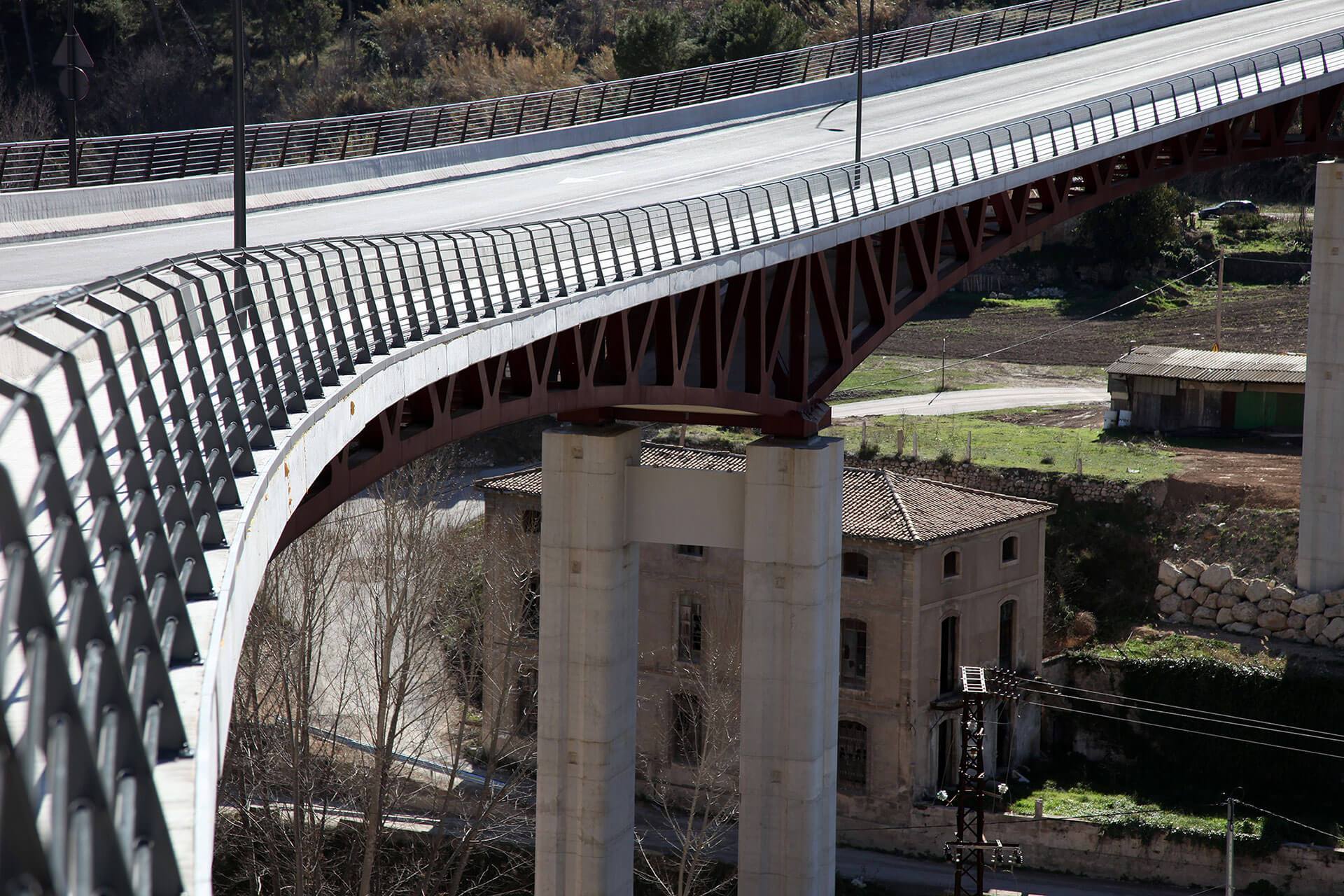

Construction of a road of 683 m long which 426 m are made by a mixture viaduct of eight spans (maximum span: 64 m), circle top view and maximum slope of 8% and vertical curve over the Serpis river. The viaduct is composed by:
- 7 reinforced concrete double shaft pier above 9,30 and 22 m height, braced on top.
- Steel girder structure with box section and variable depth (between 3 and 6 m)
- Continuous reinforced concrete deck casted on site, 13,50 m wide, with joints only on the abutments
The cross section is composed by 2 carriageways of 3,80 m and 2 footpaths on the edges (one for pedestrians and other for bicycles) protected with parapet and hand railing.
